A few pictures of the relocated crankcase breather.
 |

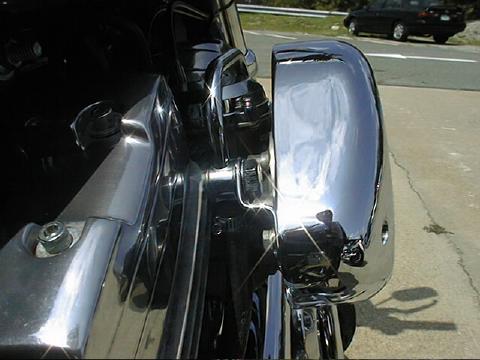

Crankcase breather filter mounted to the upper front motor mount bracket. The breather housing replaced one of the large flat washers. This resolved my problem of oil dripping out of the carb cover onto my oil tank and pipes. It did occaisonally leaves a couple drops on the ground, but better there than on the bike. I mounted it up front in an attempt to get it as far as possible from the rear wheel. It dripped so little, it probably wouldn't have mattered, but I felt better having it mounted there. |
 |

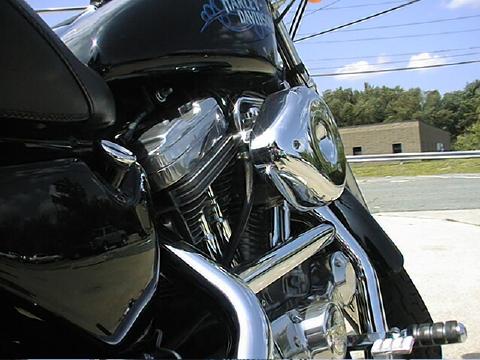

A rear shot of the air cleaner and the breather tube. |
 |
Another rear shot. You can see the "Z" shapped brackets used to hold the air cleaner in place. |
 |

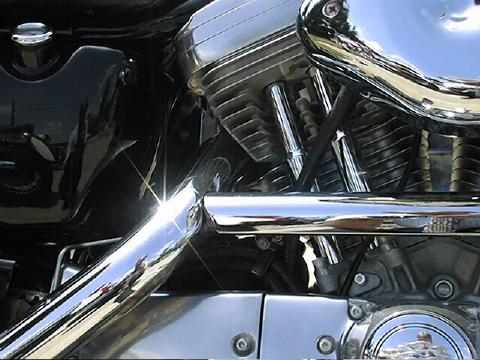

A pic of the rubber breather tube. It snaked it's way behind the exhaust crossover, behind the transmission sprocket cover, and then under the bike to the breather filter. I tie wrapped it to the other oil lines. |
 |

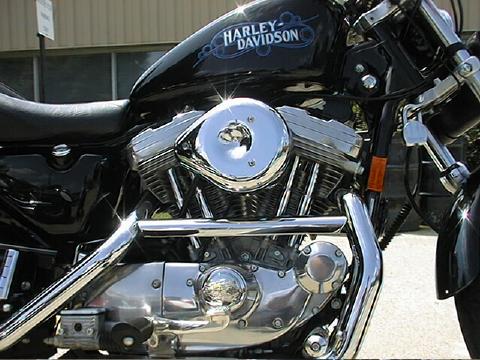

Just a nice side view of the bike. |
 |

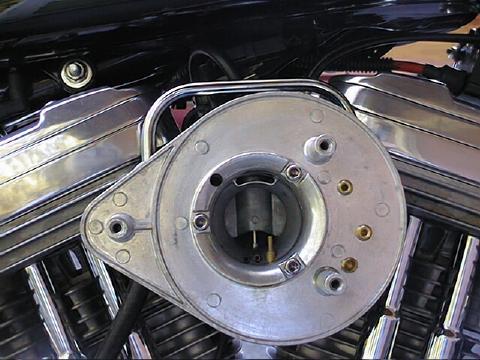

View without air cleaner cover. |
 |

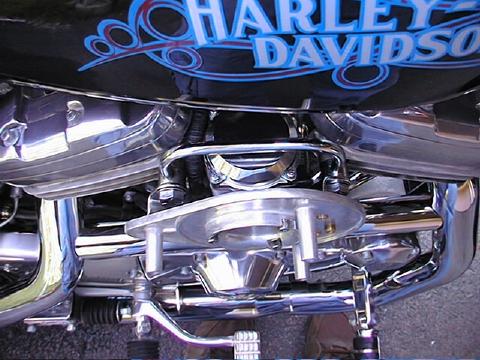

A top view without the air cleaner cover. |
 |

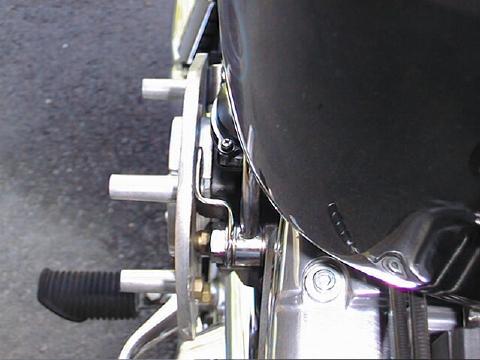

A top, front view without the air cleaner cover. |
